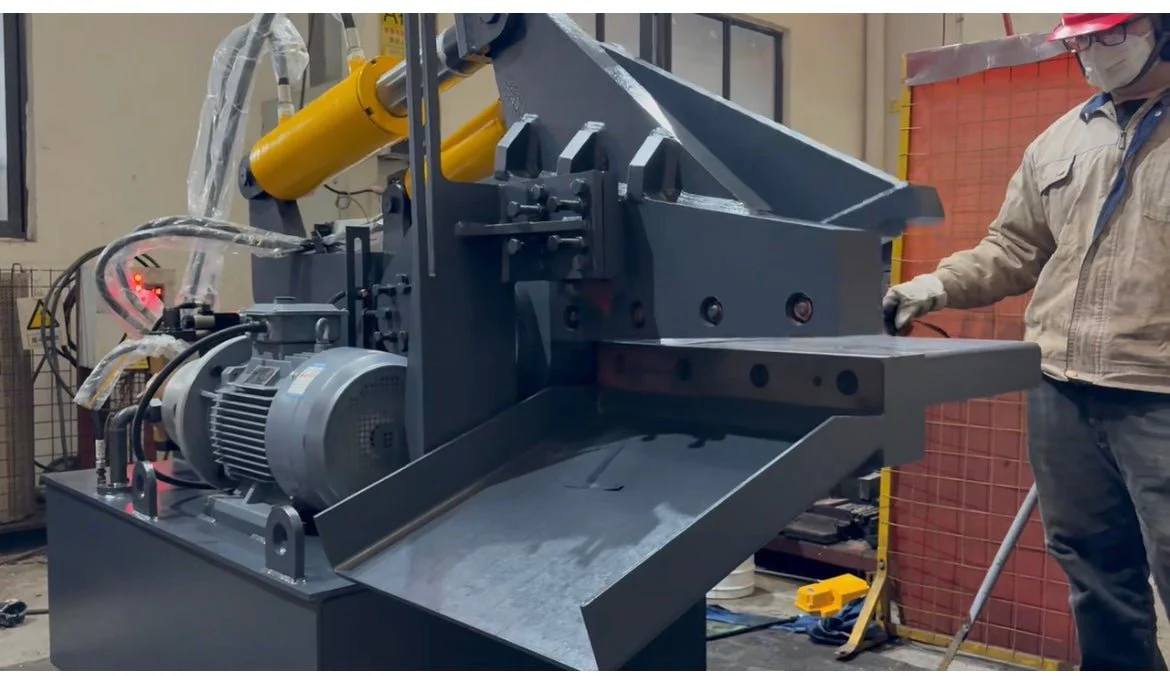

Industrial Hydraulic Metal Shear 225,000 lb Cutting Force 24 in Blade 15 HP

Hydraulic Shear – Technical Specifications (U.S. Units)

Maximum Shear Capacity:

≈ 225,000 lbf (converted from 1000 kN)

Maximum Pressing Force:

≈ 44,000 lbf (converted from 196 kN)

Maximum Blade Opening:

≈ 12.6 inches (converted from 320 mm)

Cutting Blade Length:

≈ 23.6 inches (converted from 600 mm)

Shearing Speed:

9–16 cuts per minute

System Working Pressure:

≈ 3,120 PSI (converted from 21.5 MPa)

Power System

Electric Motor:

15 HP

Motor Model: Y160L-6

Hydraulic Oil Pump:

Pump Model: 40YCY14-1B

Displacement: ≈ 2.44 in³ per revolution (converted from 40 ml/rev)

High-force 225,000-lb shear capacity

23.6-inch blade for wide cutting

15 HP motor

Industrial 3,120 PSI hydraulic system

Up to 16 cuts per minute
