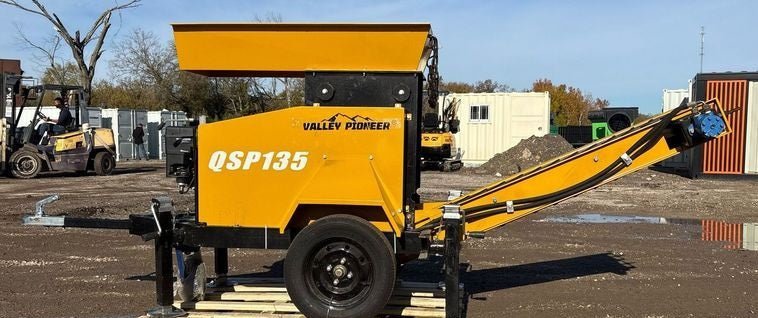

QSP135 Wheeled Mini Jaw Crusher – Portable Rock Crushing Plant – Model R228481

QSP135 Wheeled Mini Jaw Crusher – Portable Rock Crushing Plant

🔧 Key Features

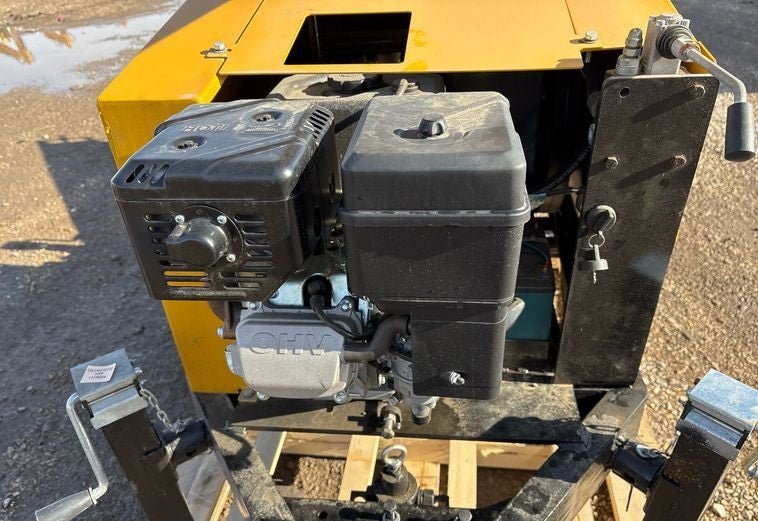

• Engine: Industrial-grade OHV gas engine with recoil start and electric start capability

• Crushing Chamber: Heavy-duty twin jaw system with hardened steel jaw plates

• Maximum Feed Size: Up to ~16 in × 6 in (400 × 150 mm) material at the jaw opening

• Finished Product Size (Adjustable): Approximately ¾ in up to 5 in (20–120 mm) depending on jaw setting and material

• Adjustability: Mechanical jaw adjustment allows control of discharge size

• Conveyor: ~12 in wide rubber chevron conveyor belt with steel rollers

• Feed Hopper: Wide-mouth reinforced hopper, approx. 20 in+ opening

• Frame: Fully wheeled chassis with torsion axle suspension and road-ready tires

• Mobility: Tow hitch and stabilizing jack stands for easy transport and setup

• Electrical: Built-in battery and wiring harness for electric start and accessories

📏 Approximate Dimensions

• Overall Length (including conveyor): ~10–12 ft

• Width: ~3.5–4 ft

• Height: ~5–6 ft

• Weight: ~2,000–2,500 lb (approximate)

💼 Applications

Ideal for:

• Construction and demolition sites

• On-site concrete and asphalt recycling

• Mining and quarry test crushing

• Farm, ranch, and rural property use

• Landscape stone and aggregate production

📦 Included With Purchase

• Fully assembled QSP135 jaw crusher

• Battery and wiring for electric start

• Transport-ready wheeled base with hitch

---

🔎 Quick Size Summary (for buyers)

• Max feed size: ~16" × 6"

• Finished product: ~¾" to 5" adjustable
